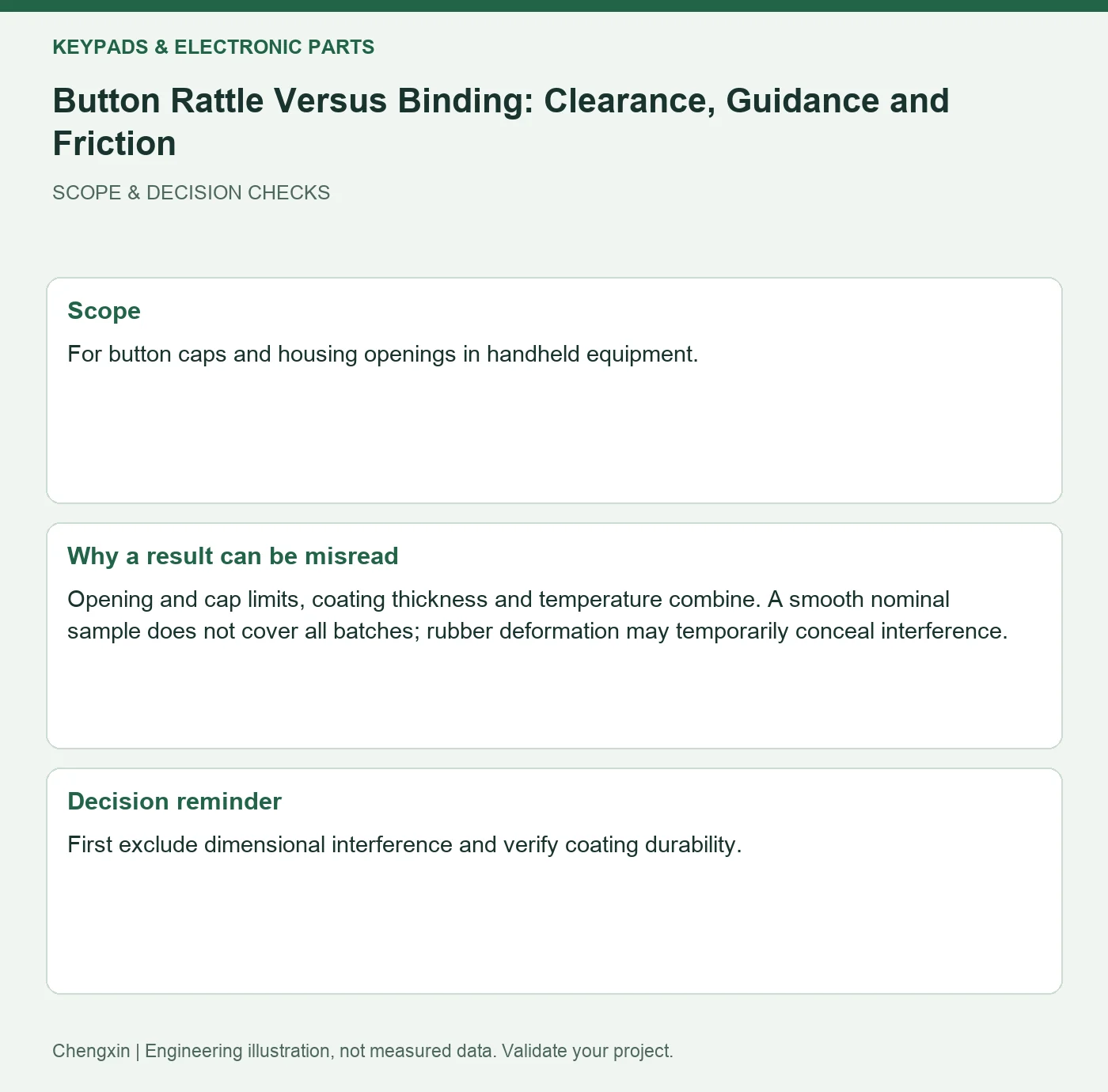

Scope and common interpretation errors
For button caps and housing openings in handheld equipment.
Opening and cap limits, coating thickness and temperature combine. A smooth nominal sample does not cover all batches; rubber deformation may temporarily conceal interference.

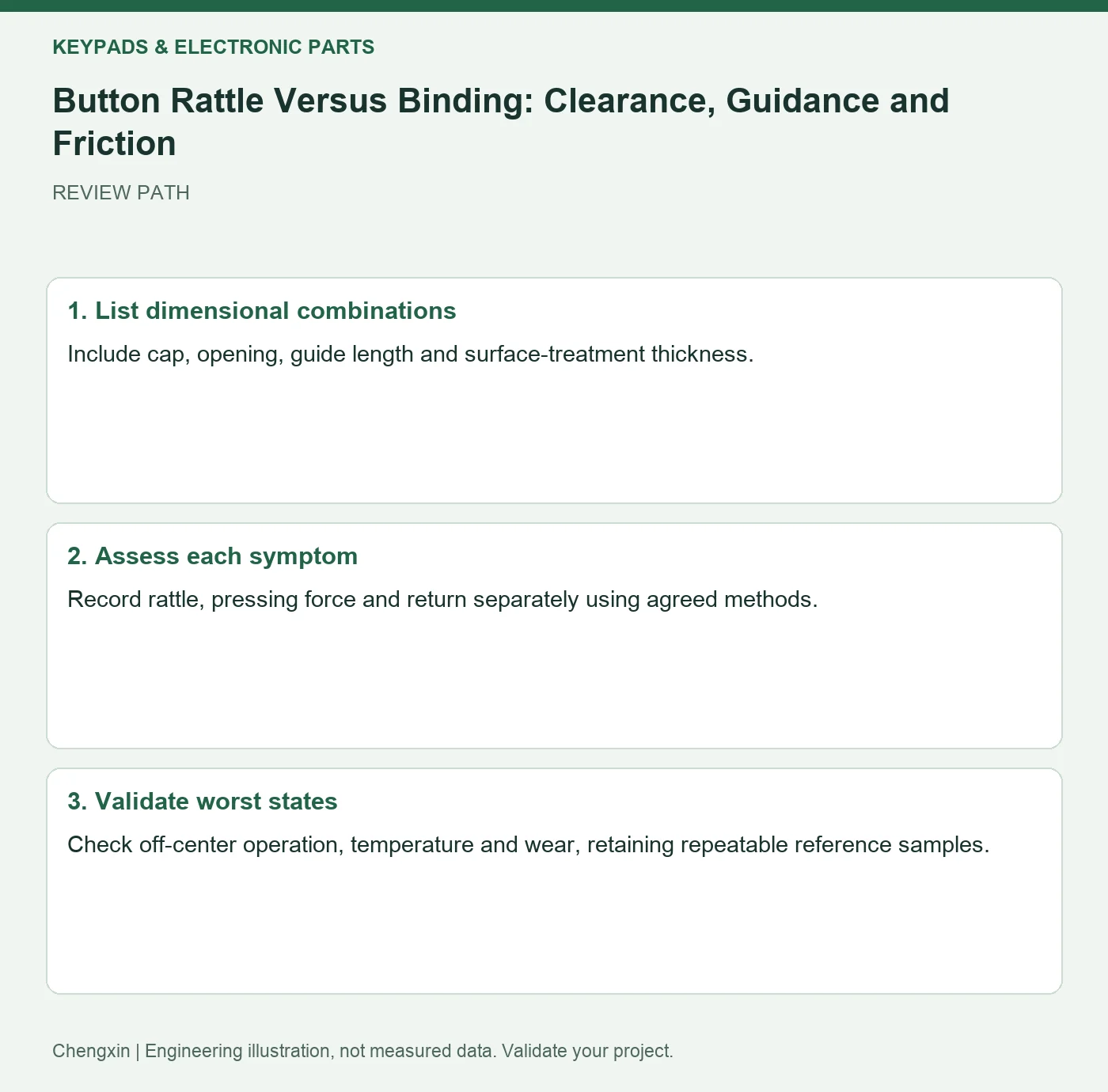

Turn the review into recorded checks
| Step | Action and evidence |
|---|---|
| 1 · List dimensional combinations | Include cap, opening, guide length and surface-treatment thickness. |
| 2 · Assess each symptom | Record rattle, pressing force and return separately using agreed methods. |
| 3 · Validate worst states | Check off-center operation, temperature and wear, retaining repeatable reference samples. |
A comparison to avoid misinterpretation
If a smaller opening reduces rattle but slows return, report both outcomes rather than showing only improved appearance.
Frequently asked question
Can a feel coating remove every friction problem?
First exclude dimensional interference and verify coating durability.
Background and further reading
This note addresses one specific question. For broader concepts, see the related background guide.
Related question: Unclear Laser-Etched Silicone Key Legends: Coating and Contrast.
External references support the relevant concepts. The review steps and scenarios are independent engineering discussion guidance, not quotations from a standard or external organization. Use agreed methods, applicable document revisions and complete conditions.
