Scope and common interpretation errors
For removable-window housings, not a complete optical- or structural-adhesive process design.
Water may enter at one edge and collect elsewhere; fixing holes can bypass the frame. Final droplet location can be mistaken for the inlet.

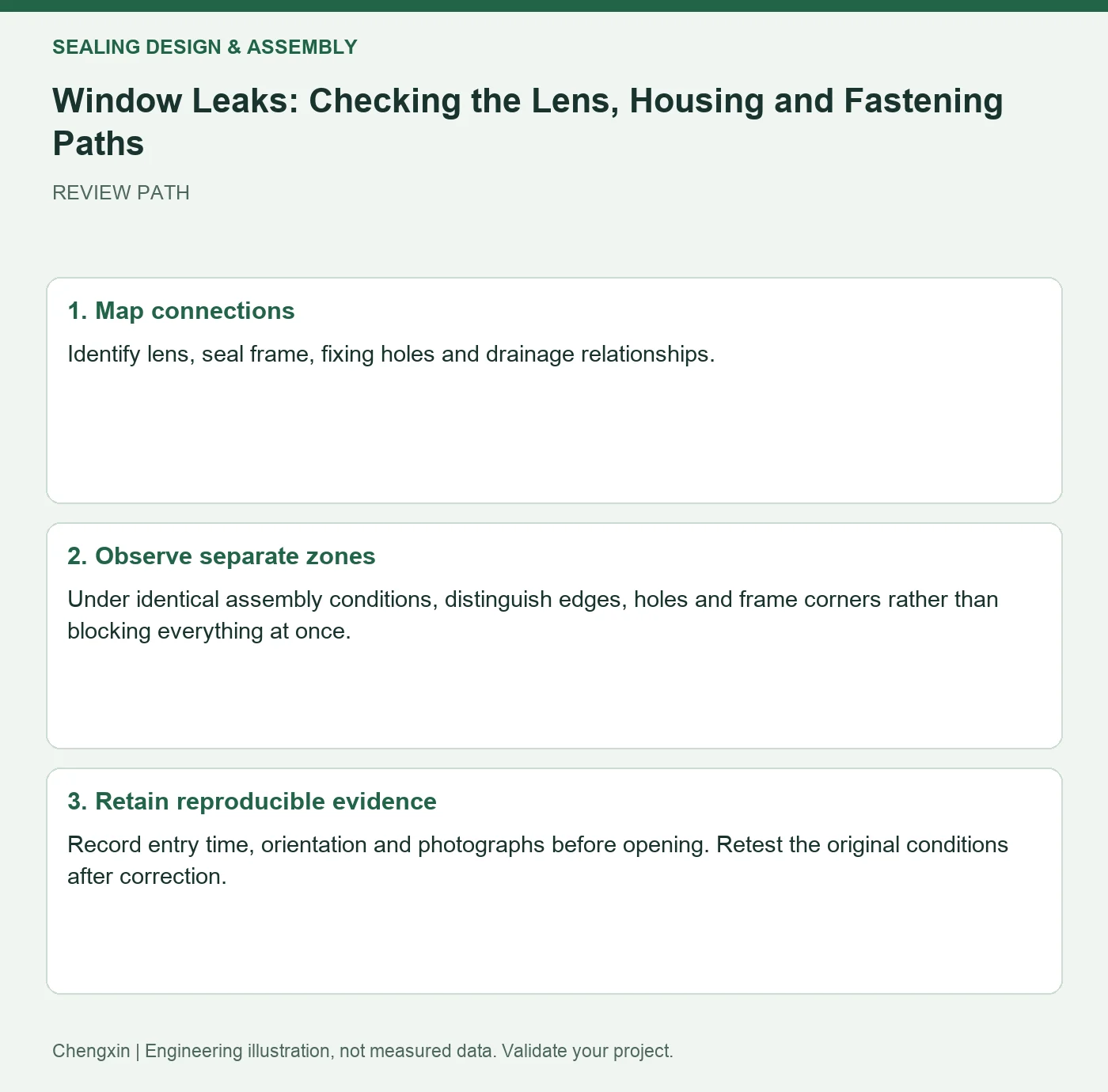

Turn the review into recorded checks
| Step | Action and evidence |
|---|---|
| 1 · Map connections | Identify lens, seal frame, fixing holes and drainage relationships. |
| 2 · Observe separate zones | Under identical assembly conditions, distinguish edges, holes and frame corners rather than blocking everything at once. |
| 3 · Retain reproducible evidence | Record entry time, orientation and photographs before opening. Retest the original conditions after correction. |
A comparison to avoid misinterpretation
If blocking fixing holes removes water traces, investigate that path further; this alone neither qualifies the frame nor eliminates durability testing.
Frequently asked question
Will a wider seal frame stop every bypass leak?
No. Interfaces bypassing the contact band need separate treatment.
Background and further reading
This note addresses one specific question. For broader concepts, see the related background guide.
Related question: When to Measure Silicone Rings After Stretching and Assembly.
External references support the relevant concepts. The review steps and scenarios are independent engineering discussion guidance, not quotations from a standard or external organization. Use agreed methods, applicable document revisions and complete conditions.
