Identify units and the test object
ASTM D149 addresses breakdown and dielectric strength of solid insulation at commercial power frequencies; ASTM D257 addresses DC resistance and resistivity. Specify coupon or finished component, thickness, electrodes and environment. Different units cannot be ranked simply by numerical magnitude.
Review edges and interfaces separately
Real parts include inserts, air gaps, contamination, seams and geometric transitions. A passing material coupon does not qualify the assembly, which needs its applicable design and test requirements. Distinguish damp or aged results from dry new-specimen data.
Use qualified electrical testing
Appropriately equipped laboratories or qualified personnel must determine and carry out high-voltage tests. Purchasing reviews should focus on report scope, basis, results and sample identity, not informal voltage trials. Leave absent supplier properties or certifications unconfirmed rather than inferring Chengxin certification from generic silicone characteristics.

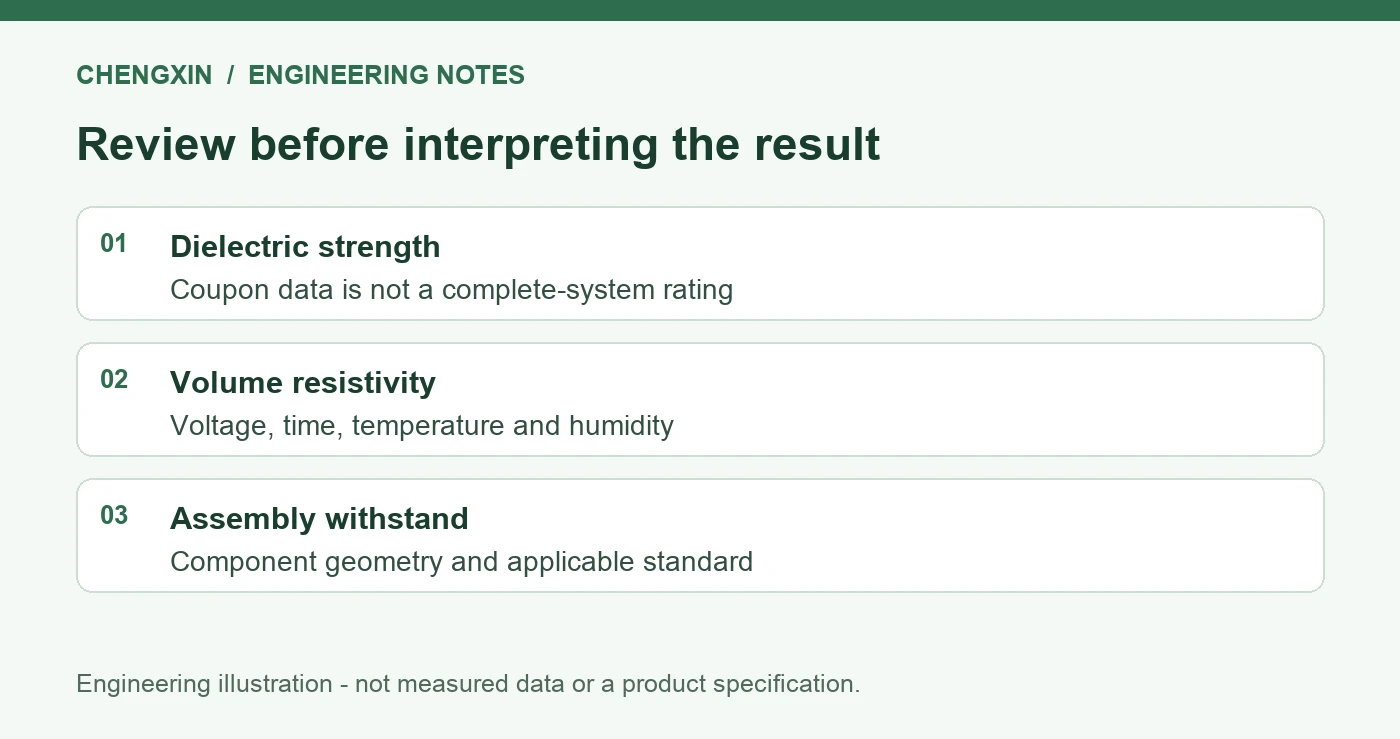

Project review checklist

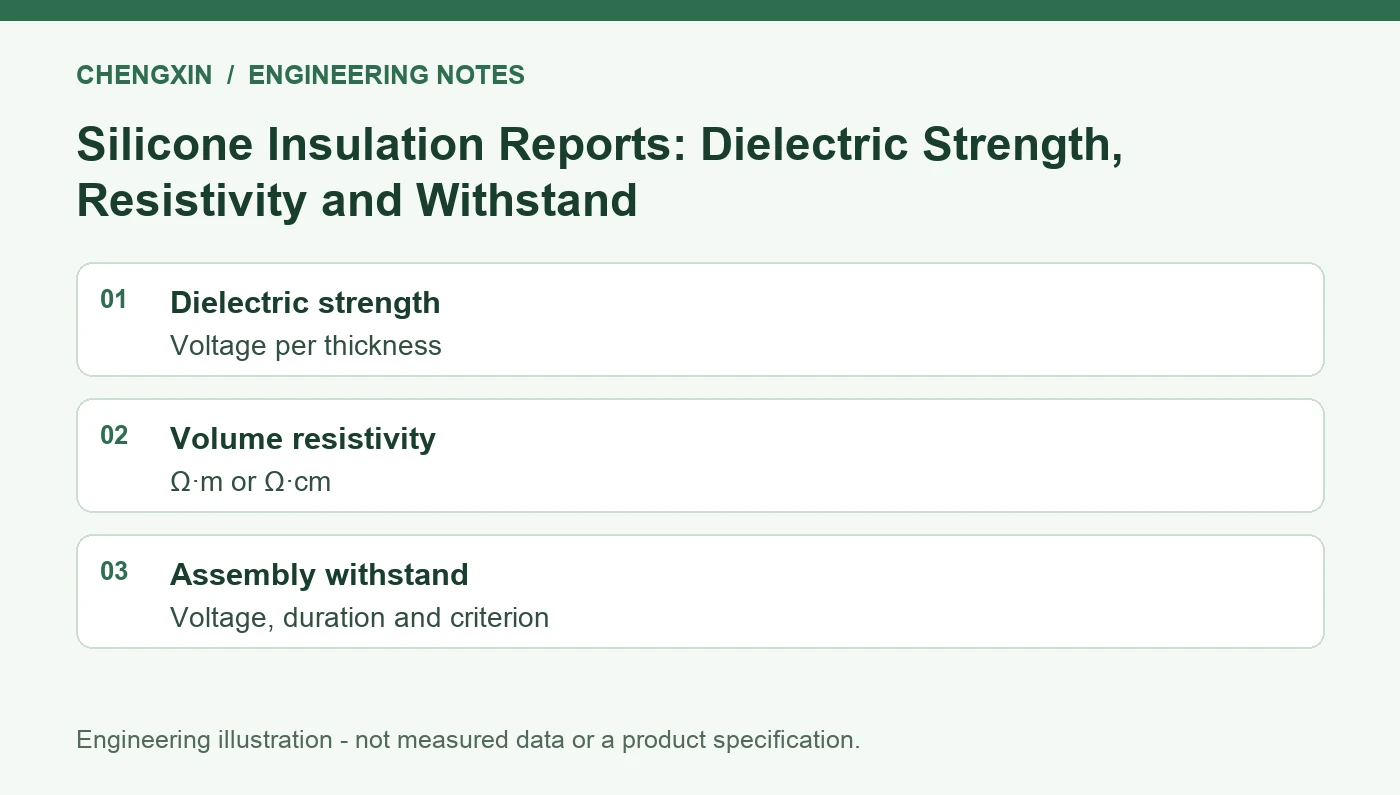

| Property | Typical expression | Boundary |
|---|---|---|
| Dielectric strength | Voltage per thickness | Coupon data is not a complete-system rating |
| Volume resistivity | Ω·m or Ω·cm | Voltage, time, temperature and humidity |
| Assembly withstand | Voltage, duration and criterion | Component geometry and applicable standard |
Illustrative project example
If two reports use different volume-resistivity units, align units and conditions first. Similar converted numbers still do not eliminate interface and finished-assembly validation.
Frequently asked questions
Is thicker silicone always electrically safer?
A complete electrical design review is needed; local defects, interfaces and thermal issues are not solved by thickness alone.
Does one withstand pass establish life?
No. Assess long-term electrical, thermal, moisture and mechanical effects for the application.
Technical references
References explain methods and terminology. They do not establish certification, acceptance limits or measured performance for a Chengxin product. Confirm the applicable edition and project-specific method with the responsible laboratory.
