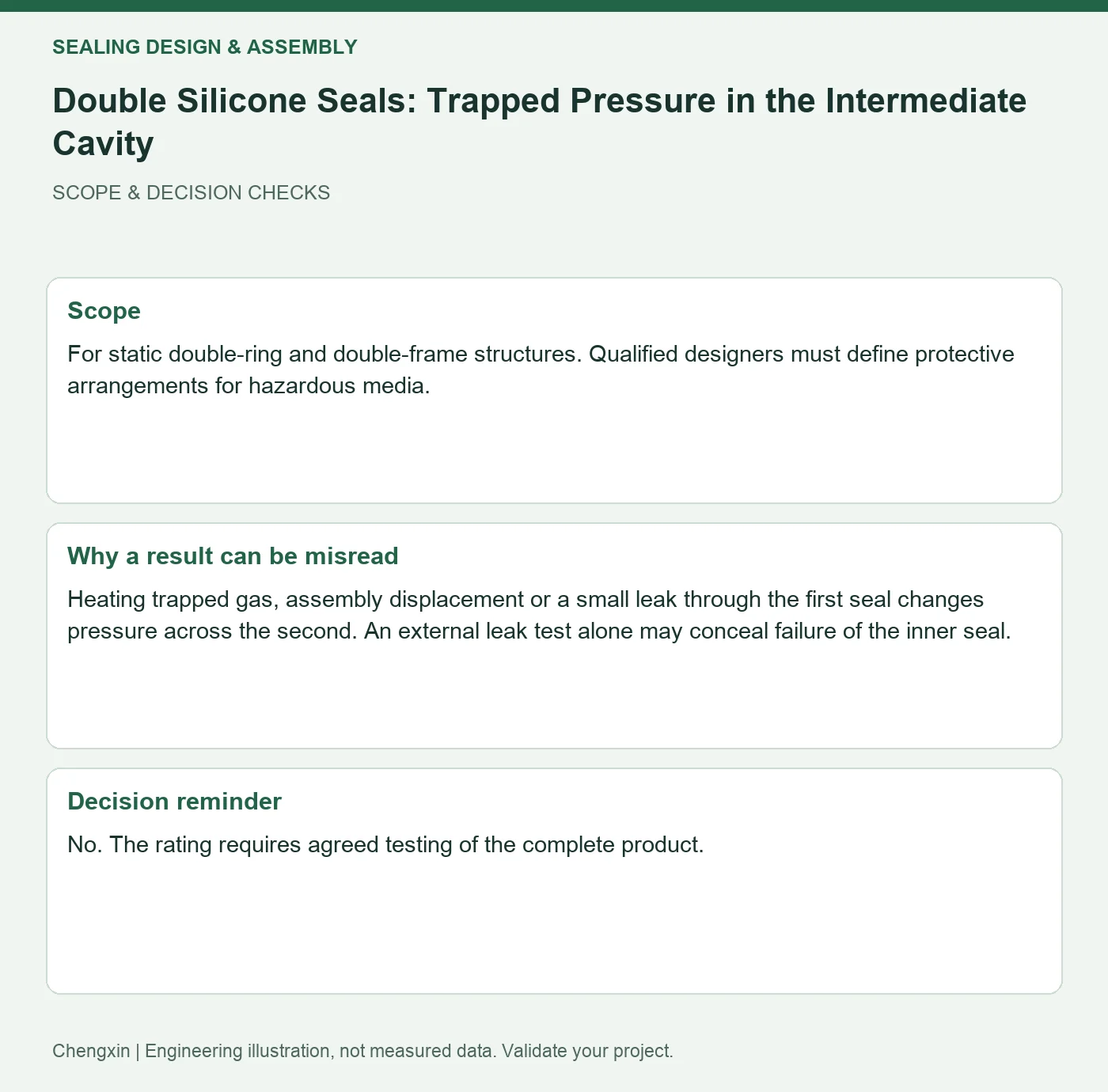

Scope and common interpretation errors
For static double-ring and double-frame structures. Qualified designers must define protective arrangements for hazardous media.
Heating trapped gas, assembly displacement or a small leak through the first seal changes pressure across the second. An external leak test alone may conceal failure of the inner seal.

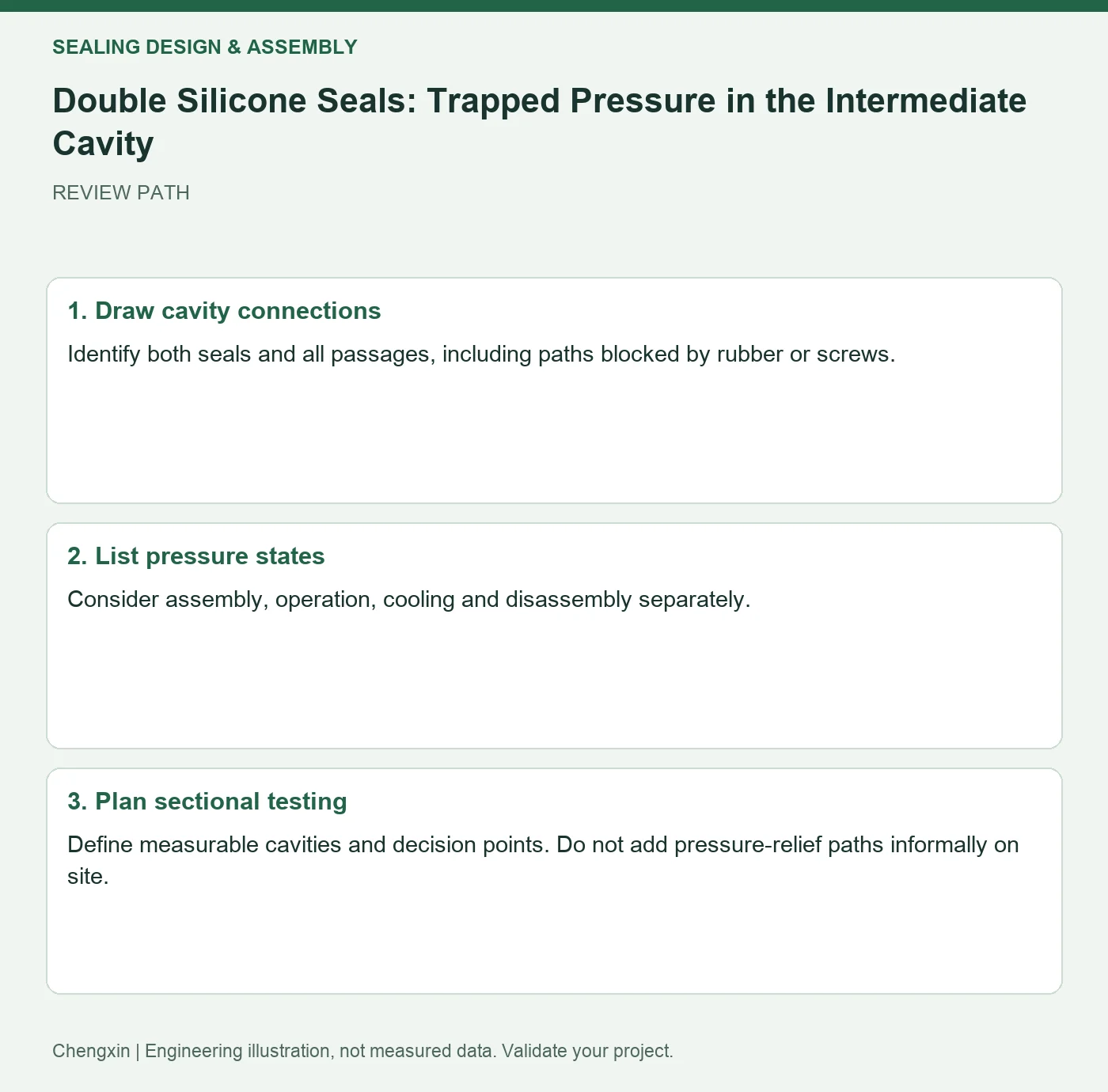

Turn the review into recorded checks
| Step | Action and evidence |
|---|---|
| 1 · Draw cavity connections | Identify both seals and all passages, including paths blocked by rubber or screws. |
| 2 · List pressure states | Consider assembly, operation, cooling and disassembly separately. |
| 3 · Plan sectional testing | Define measurable cavities and decision points. Do not add pressure-relief paths informally on site. |
A comparison to avoid misinterpretation
Compare test structures with open and closed intermediate cavities and observe pressure before and after temperature stabilization. This is a validation-planning example, not advice to drill a vent.
Frequently asked question
Does adding a seal automatically improve an IP rating?
No. The rating requires agreed testing of the complete product.
Background and further reading
This note addresses one specific question. For broader concepts, see the related background guide.
Related question: Reusing Removed Silicone Seals: Maintenance Evidence to Check.
External references support the relevant concepts. The review steps and scenarios are independent engineering discussion guidance, not quotations from a standard or external organization. Use agreed methods, applicable document revisions and complete conditions.
