Same Mold Setpoint, Different Silicone Parts: Actual Surface Temperature

Molding, Tooling and Finishing
Key point: A controller setpoint is not the actual temperature at every mold location. For fixed-position cure or dimensional differences, review measurement locations, stabilization and loading.

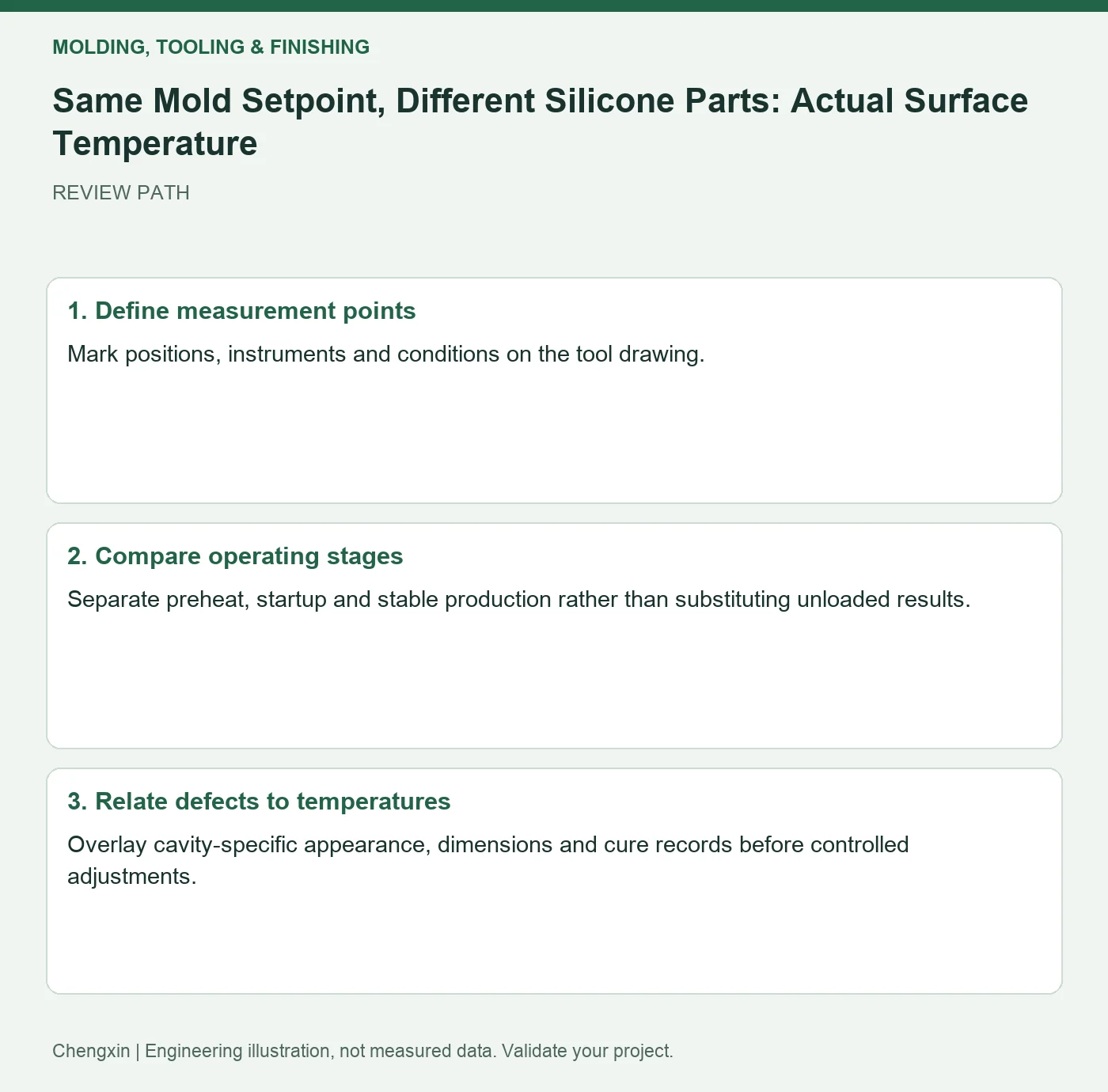

Same Mold Setpoint, Different Silicone Parts: Actual Surface Temperature — three-step review diagram
Original engineering review illustration; not a test record.

Scope and common interpretation errors

For molding consistency reviews; qualified site personnel must measure and operate equipment.

Heating layout, contact and cycle timing affect distribution. Empty-tool and continuous-production states differ; methods and sensor contact add measurement variation.

Custom Shaped Silicone Parts — existing product photograph for structural reference
Existing product photograph from this website. It illustrates structure; it does not establish that the part passed this article’s tests or suits every operating condition.

Turn the review into recorded checks

StepAction and evidence
1 · Define measurement pointsMark positions, instruments and conditions on the tool drawing.
2 · Compare operating stagesSeparate preheat, startup and stable production rather than substituting unloaded results.
3 · Relate defects to temperaturesOverlay cavity-specific appearance, dimensions and cure records before controlled adjustments.

A comparison to avoid misinterpretation

A persistently different corner cavity calls for local temperature and tool-contact checks, not only raising the whole-machine setpoint.

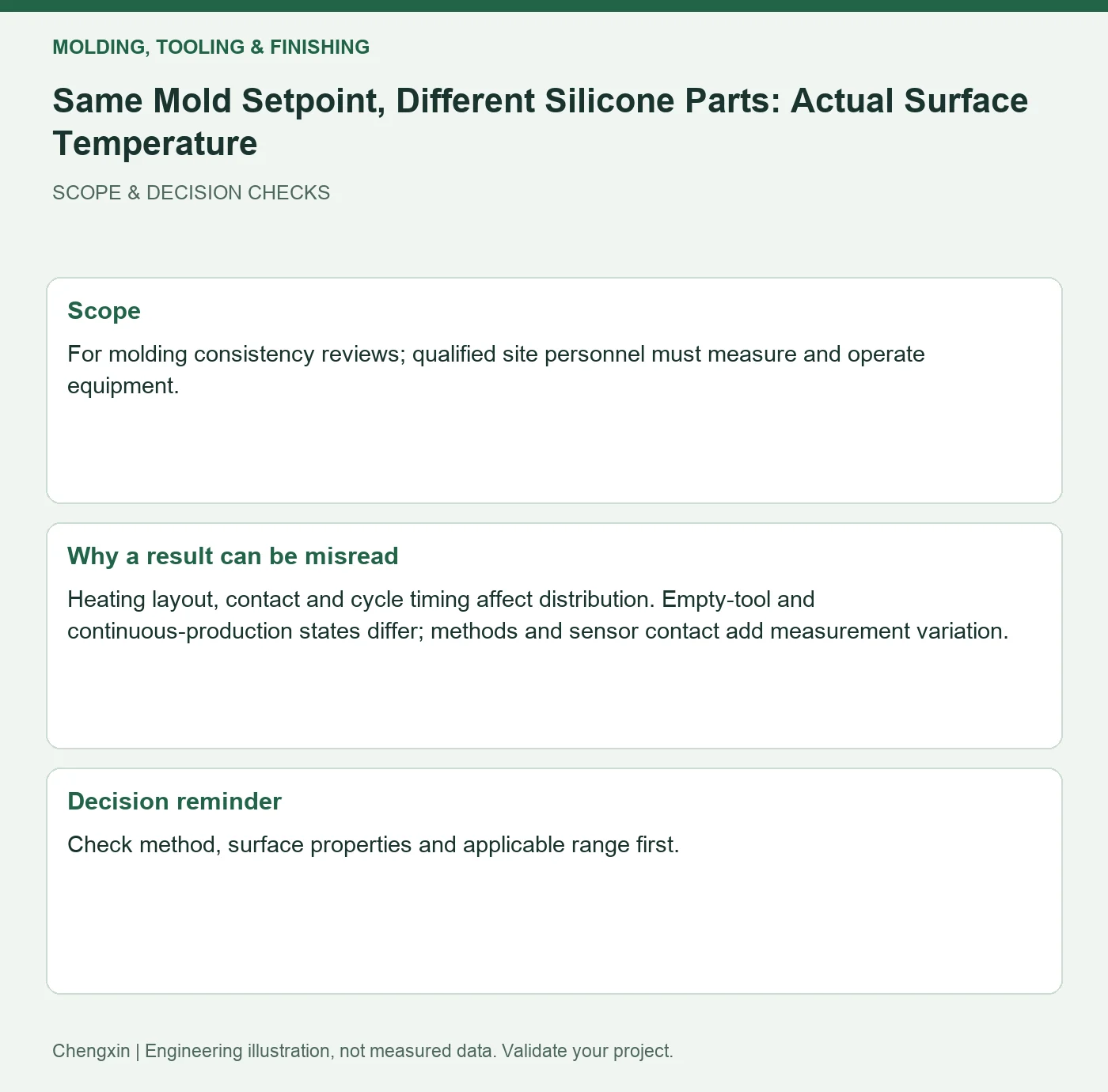

Same Mold Setpoint, Different Silicone Parts: Actual Surface Temperature — scope and decision reminders
Original decision-check illustration. Examples are not Chengxin test data, customer cases or universal acceptance limits.

Frequently asked question

Can infrared readings directly replace contact measurements?

Check method, surface properties and applicable range first.

Background and further reading

This note addresses one specific question. For broader concepts, see the related background guide.

Related question: Silicone Damage During Demolding: Release Path and Weak Areas.

External references support the relevant concepts. The review steps and scenarios are independent engineering discussion guidance, not quotations from a standard or external organization. Use agreed methods, applicable document revisions and complete conditions.
