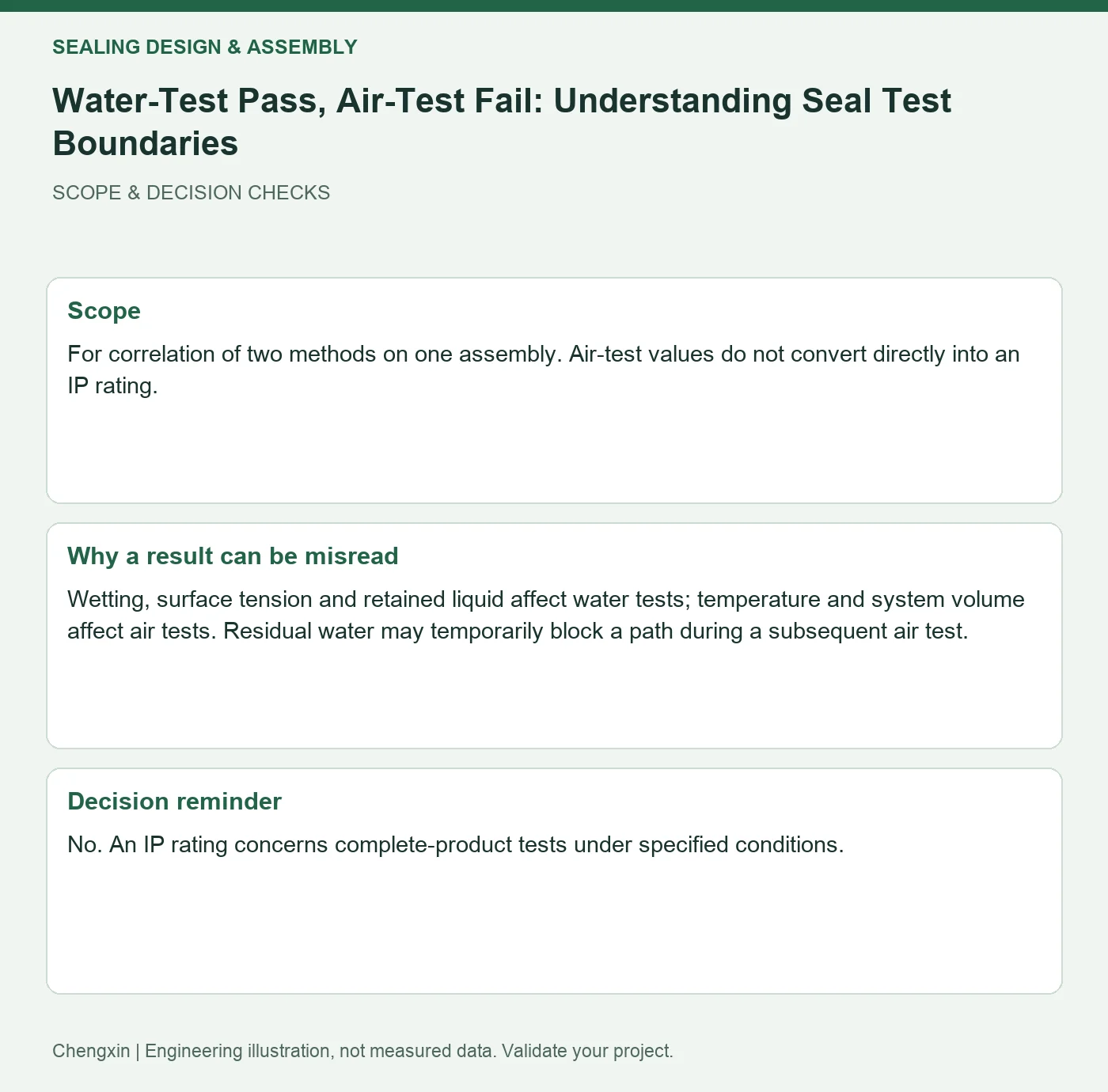

Scope and common interpretation errors
For correlation of two methods on one assembly. Air-test values do not convert directly into an IP rating.
Wetting, surface tension and retained liquid affect water tests; temperature and system volume affect air tests. Residual water may temporarily block a path during a subsequent air test.

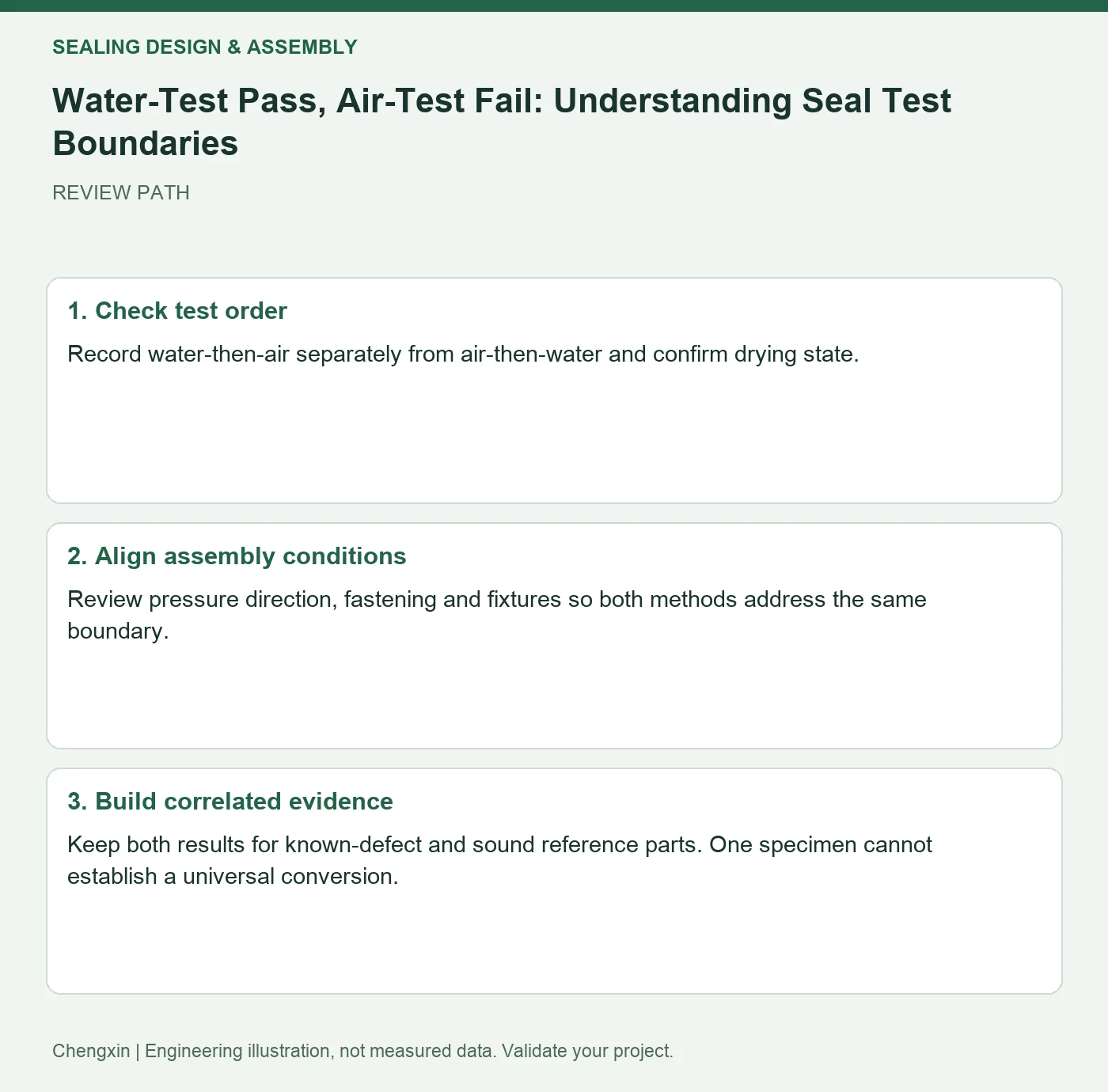

Turn the review into recorded checks
| Step | Action and evidence |
|---|---|
| 1 · Check test order | Record water-then-air separately from air-then-water and confirm drying state. |
| 2 · Align assembly conditions | Review pressure direction, fastening and fixtures so both methods address the same boundary. |
| 3 · Build correlated evidence | Keep both results for known-defect and sound reference parts. One specimen cannot establish a universal conversion. |
A comparison to avoid misinterpretation
If air results improve after water testing, compare dry and wet states and inspect the leak location before using wet-state results for production release.
Frequently asked question
Does passing an air-leak test justify IP68 labeling?
No. An IP rating concerns complete-product tests under specified conditions.
Background and further reading
This note addresses one specific question. For broader concepts, see the related background guide.
Related question: Locating Leaks in Multiport Assemblies: Fixture Baseline First.
External references support the relevant concepts. The review steps and scenarios are independent engineering discussion guidance, not quotations from a standard or external organization. Use agreed methods, applicable document revisions and complete conditions.
