Distinguish the aging measurements
ASTM D6147 describes reaction-force decay at specified temperature, time and fixed deformation. It addresses remaining clamp force, which recovered thickness cannot replace. Compounds with similar compression set still need separate force-retention evaluation in the target medium.
State the complete test history
Record specimen source, section, cure and finishing, then fix compression displacement, medium, temperature and the initial reading time. State whether compression remained continuous or cooling and fixture opening interrupted it. Do not rank unlike histories; retain raw force and relative retention, not only the final percentage.
Check actual assembly reserve
After screening compounds, validate housing tolerance limits, actual mating faces and fastening. Compare initial leakage, leakage after thermal exposure and leakage after cooling to separate temperature and deformation effects. A short curve does not justify a multiyear life promise.

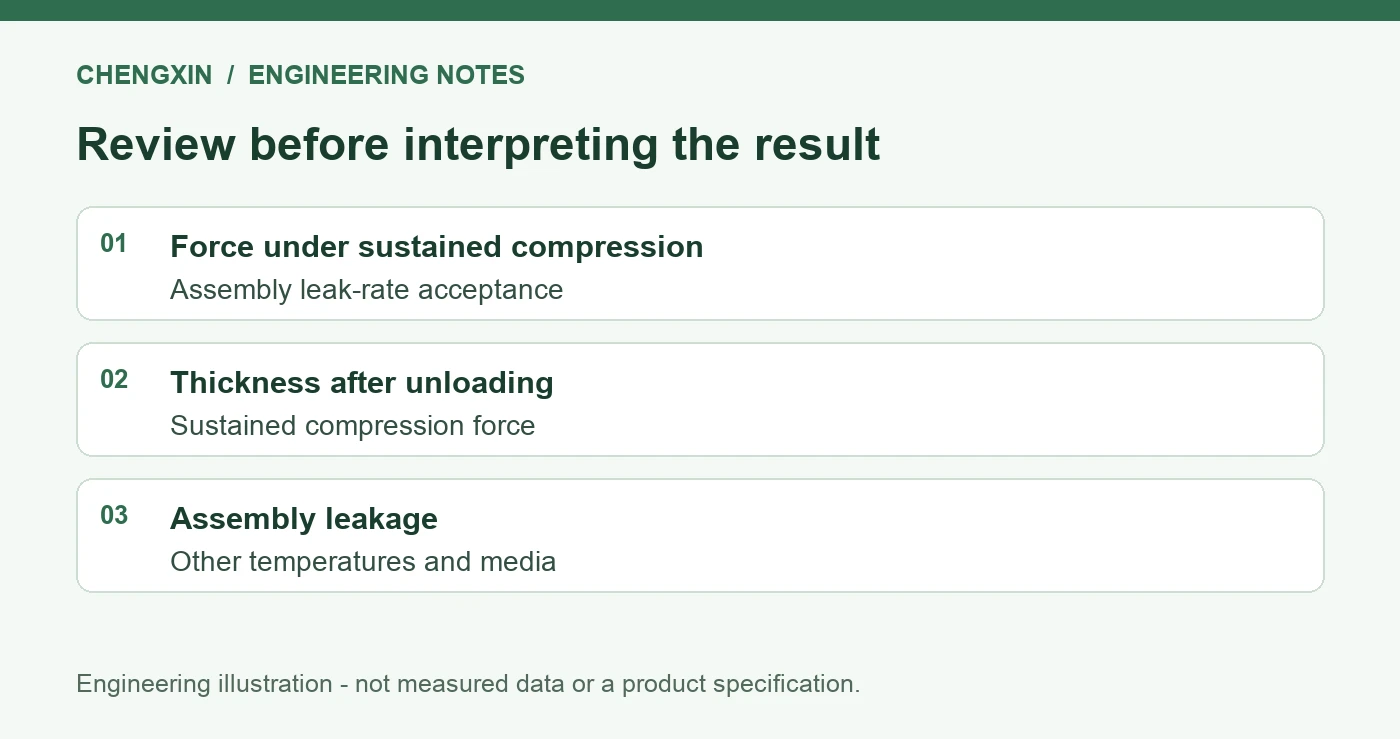

Project review checklist
| Observation | Question answered | Not a replacement for |
|---|---|---|
| Force under sustained compression | How much reaction force remains | Assembly leak-rate acceptance |
| Thickness after unloading | How much shape recovers | Sustained compression force |
| Assembly leakage | Whether stated conditions seal | Other temperatures and media |
Illustrative project example
Compare two candidate compounds in one housing under matched force-retention conditions, then test minimum-squeeze assemblies. Better material data with continuing leakage calls for housing-warpage and local-squeeze checks. This scenario contains no Chengxin measured data.
Frequently asked questions
Can more initial squeeze compensate for relaxation?
Not without design review. Overcompression can increase assembly load, extrusion and distortion.
Is a force-retention percentage enough?
No. Include initial force, reading times and complete conditions; a high percentage of a low starting force may still be inadequate.
Technical references
References explain methods and terminology. They do not establish certification, acceptance limits or measured performance for a Chengxin product. Confirm the applicable edition and project-specific method with the responsible laboratory.
